ATXBR01 Product Spec

Take an AC-DC ATX Power Supply, plug it into the connector, flip the switch, and get 12V DC (and other voltages) at the Full Output Rating of Your Power Supply with the ATX Breakout.

Also doubles as an ATX Power Supply Tester with output LEDs on: +12V, +5V, +3.3V, -12V, +5VSB, PWR_OK

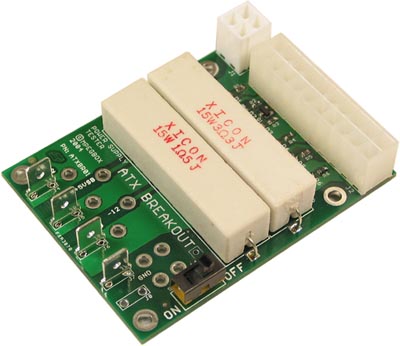

Main Product View



Animation Showing a Volt Meter probing the Pads of the Outputs

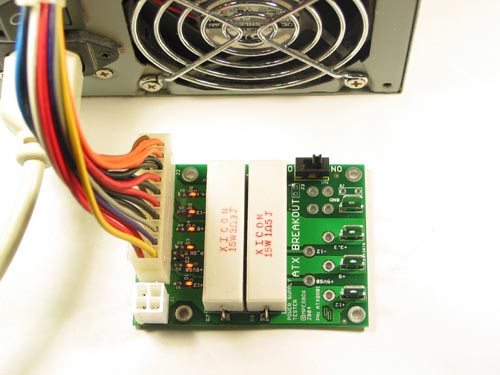

The ATX Breakout connected to a Power Supply

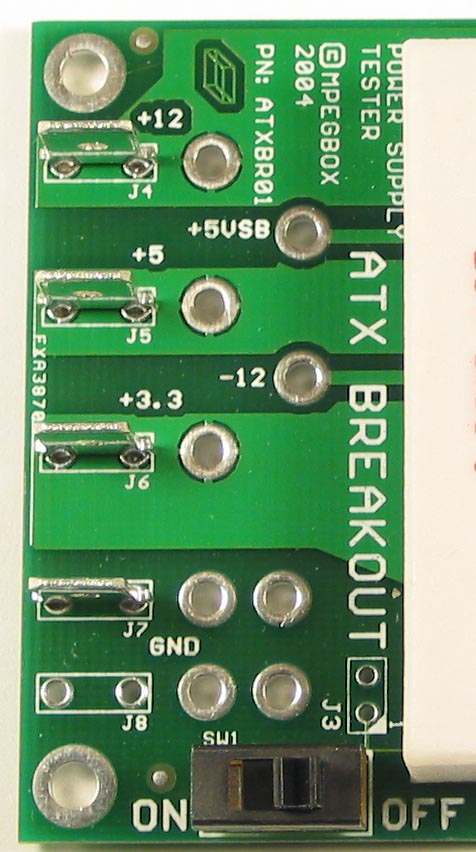

A close-up of the output pads and Blade Connectors, as well as the on/off switch
